- Maximize Engine Efficiency: Keep your engine running at peak performance with the wideband air fuel gauge, which accurately monitors air/fuel ratios to prevent damage and achieve optimal fuel efficiency in any driving condition
- Achieve Safe Boost Levels: Maintain control over turbo or supercharger pressure with the turbo boost gauge; monitor your boost levels in real time to prevent over boosting and ensure long-term engine health, perfect for an automotive gauge set
- Clear and Quick Readouts: The high-resolution digital boost gauge has an 87% larger LED display for instant readability; user-friendly designed with programmable features with two buttons on the faceplate for peak/recall and threshold warnings
- Versatile Installation: This gauge kit for cars features a slim 52mm profile for easy fit into standard gauge pods and any gauge cluster; AEMnet CAN-bus enabled, it supports daisy-chaining with systems like Infinity ECU and compatible data loggers
- Data-Driven Tuning: Connect the AEM wideband sensor to compatible systems for seamless data logging and track performance metrics; the included 0-5V analog outputs facilitate easy integration, enhancing your tuning capabilities

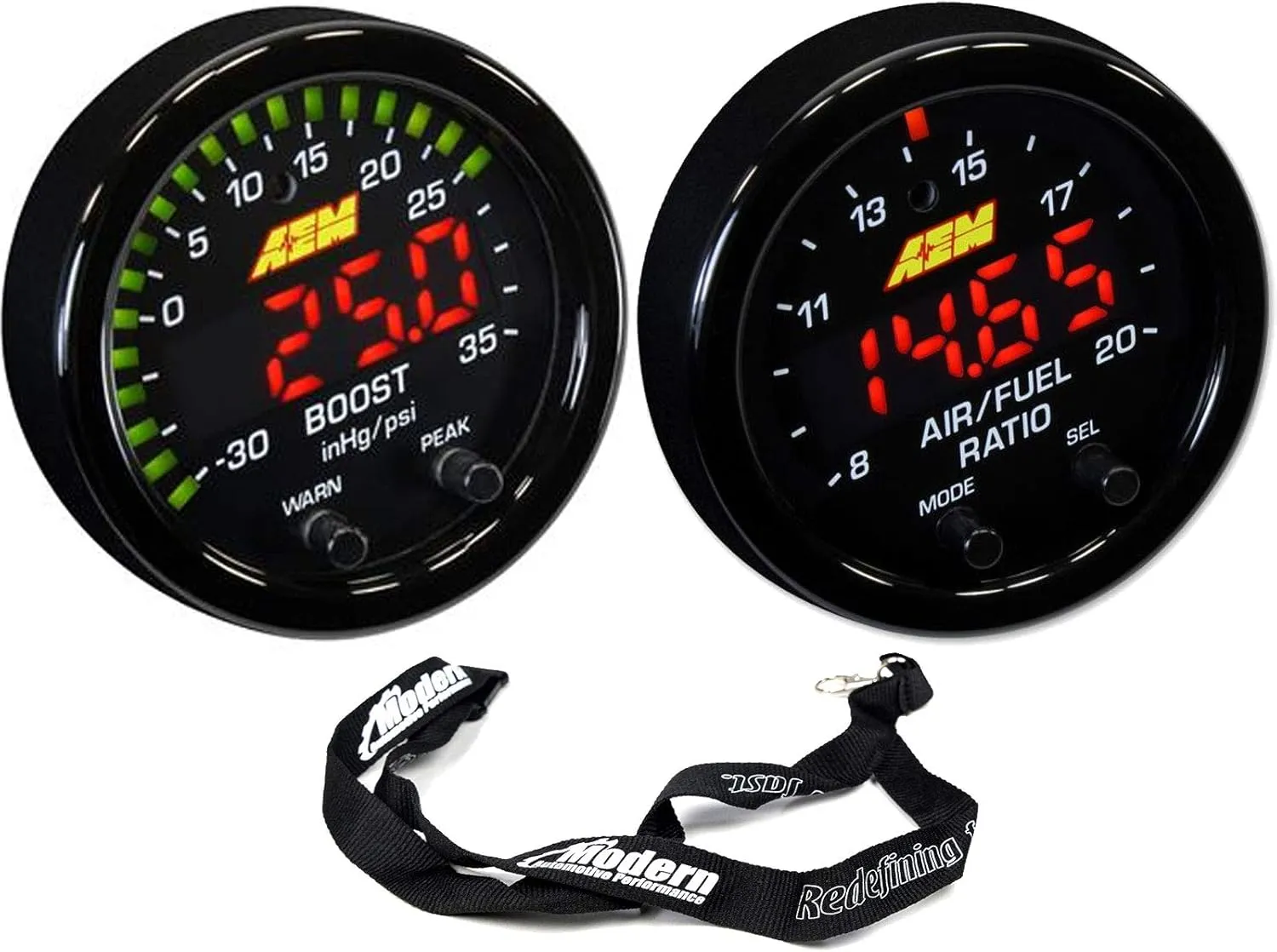

The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter, and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge’s center display. This creates the perception of a larger overall gauge, but in a common 52mm size Compatible with easy mounting. Its slim depth (less than one inch overall) and ultra slim cup depth of .200-inches dramatically increases its application base and potential mounting locations. X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers Includes Bosch 4.9LSU wideband UEGO sensor
Factory calibrated resistor does not require free-air calibration, but technology allows Compatible with free-air calibration as sensor ages if user desires
Compatible with vehicle/system voltages up to 16V
0-5V & RS232 output Compatible with data logging and feedback control, AEMnet (CANbus) Compatible with data logging and daisy-chaining multiple controllers up to 16 cylinders AEM’s 30-0306 X-Series -30in/Hg~35PSI / -1~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must Compatible with users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle. 2-1/16th (52mm) gauge diameter Compatible with easy mounting in gauge pods
Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
Programmable center LED is 87% larger than original AEM gauges
24 green outer LEDs Compatible with quick reference to engine parameter
User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)
Peak/Recall via gauge face buttons
User selectable threshold warnings
