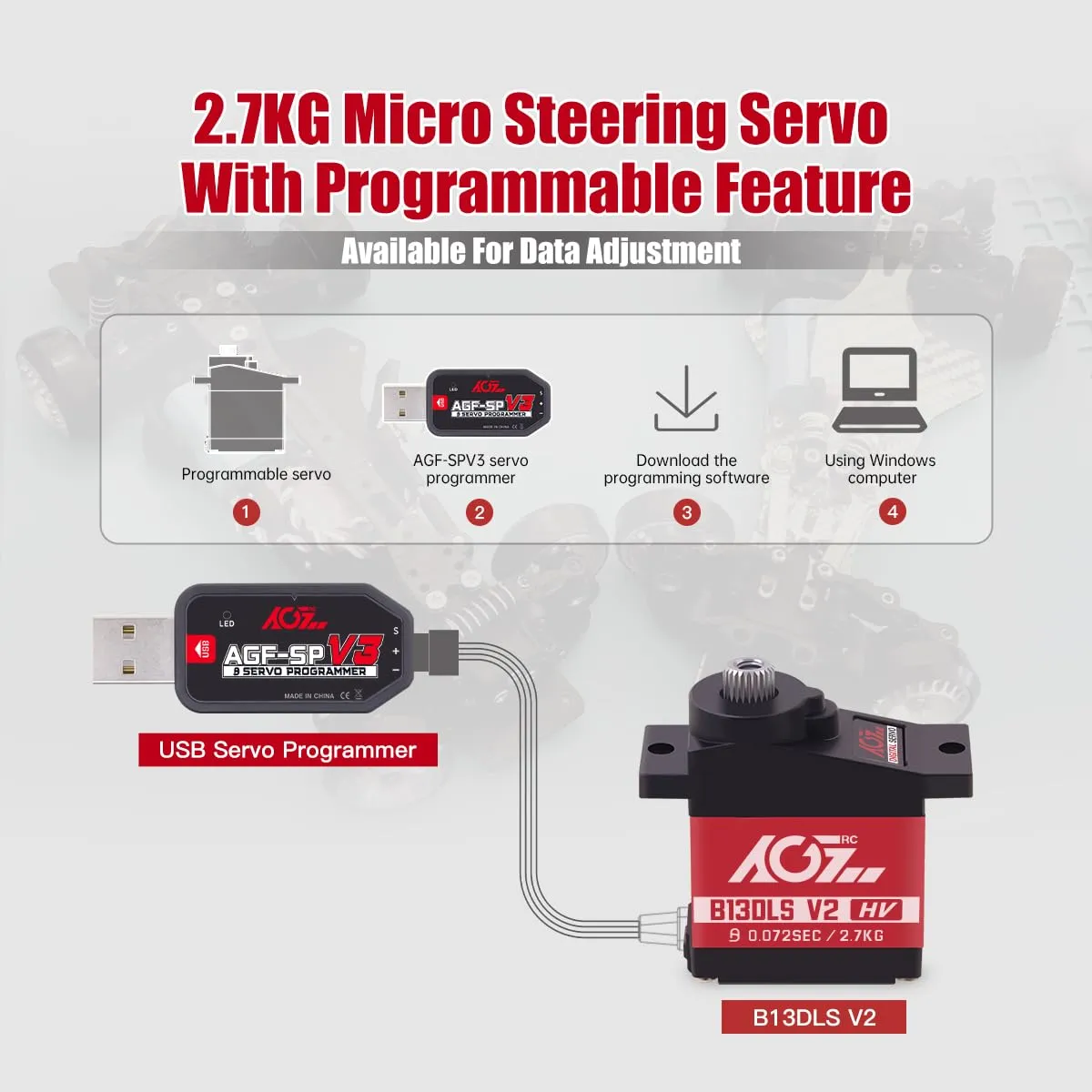

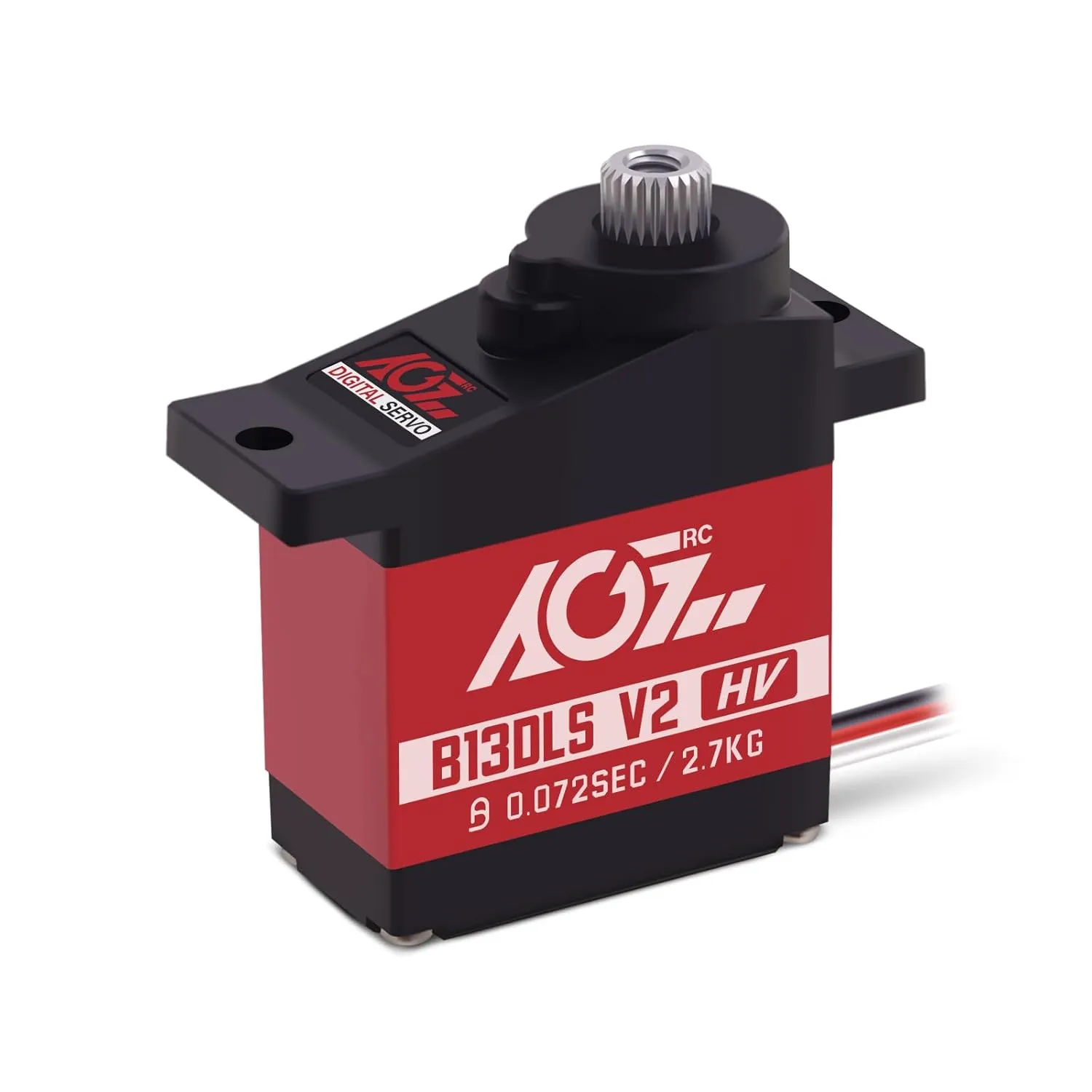

AGFRC B13DLS V2 servo, the sister version of B13DLM V2 servo, it is a 2S HV programmable digital micro high speed servo, with 16g light weight and compact size make it suitable for most mini rc cars use, and it would also be a fine choice for the rc plane if you require 0.072sec fast speed and 2.7 kg-cm high torque in micro size as the potentiometer sensor is used and it can ensure your plane will not be disturbed by the magnetic field during flight. Fully upgrade to programmable digital circuit, which support to adjust the servo parameter via USB Programmer for different device.

Feature

• Plastic and Aluminum Case
• High Precision Metal Gears
• Durable Double Ball Bearings
• High Performance Brushed Motor
• HV 2S Programmable Digital Micro Servo
• Ideal for 1/14, 1/16 Revo, 1/18, 1/24 Scale Crawler, Airplane, 450 Size Helicopter, Robot etc.

Stall Torque

• 1.6 kg-cm (22 oz-in) @ 4.8V
• 2.0 kg-cm (27 oz-in) @ 6.0V
• 2.4 kg-cm (33 oz-in) @ 7.4V
• 2.7 kg-cm (37 oz-in) @ 8.4V

Operating Speed

• 0.090sec/60° @ 4.8V
• 0.080sec/60° @ 6.0V
• 0.076sec/60° @ 7.4V
• 0.072sec/60° @ 8.4V

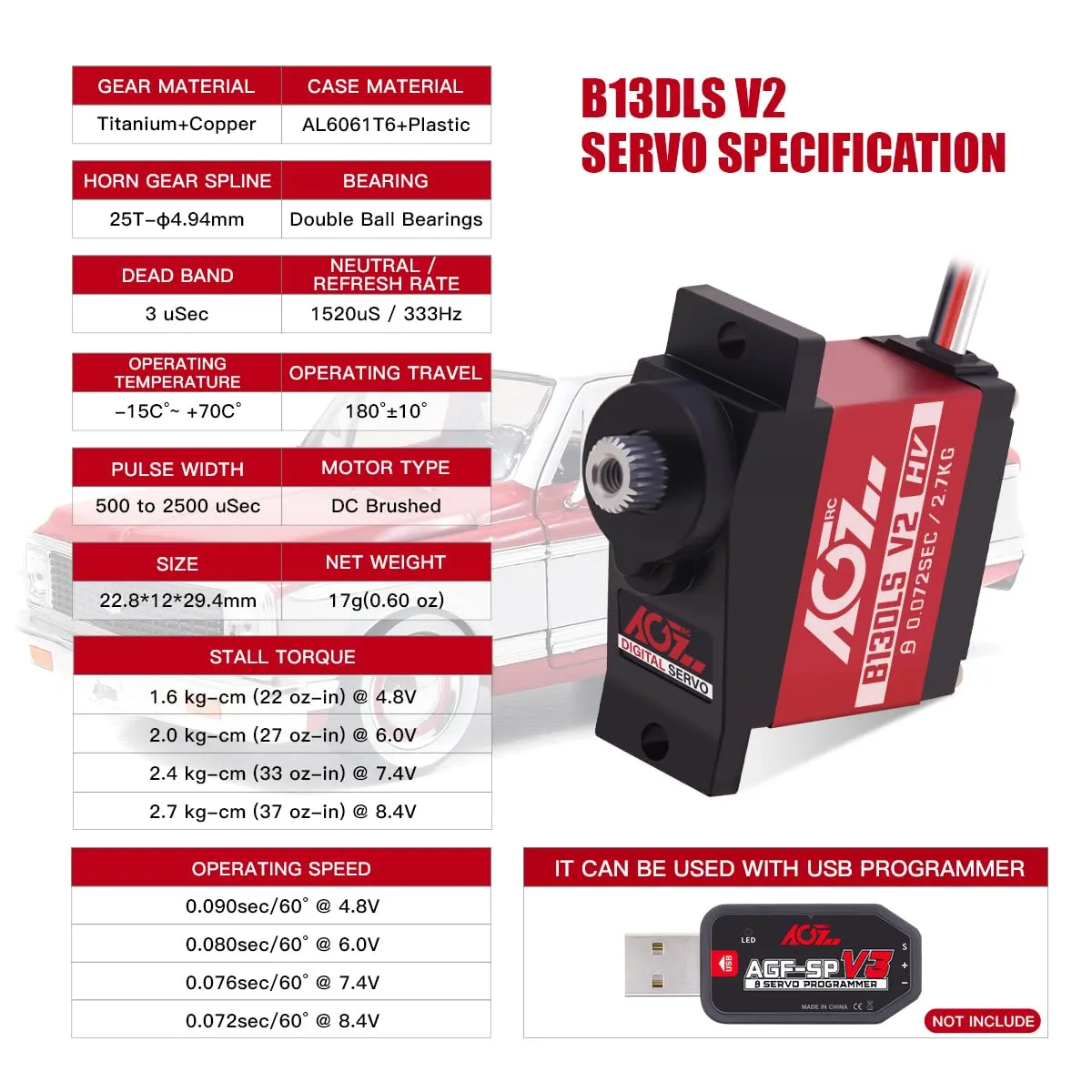

Specification

• Brand: AGFRC
• Item: B13DLS V2
• Control System: PWM
• Neutral Position: 1520uS
• Refresh Rate: 333Hz
• Dead Band: 3 uSec
• Operating Voltage: 4.8V ~ 8.4V
• Operating Travel: 180°±10°, 500 to 2500 uSec
• Horn Spline: 25T-φ4.94mm
• Case Material: AL Plastic
• Gear Material: Titanium Copper
• Weight: 17g (0.60oz)
• Wire: JR 180mm / 26AWG

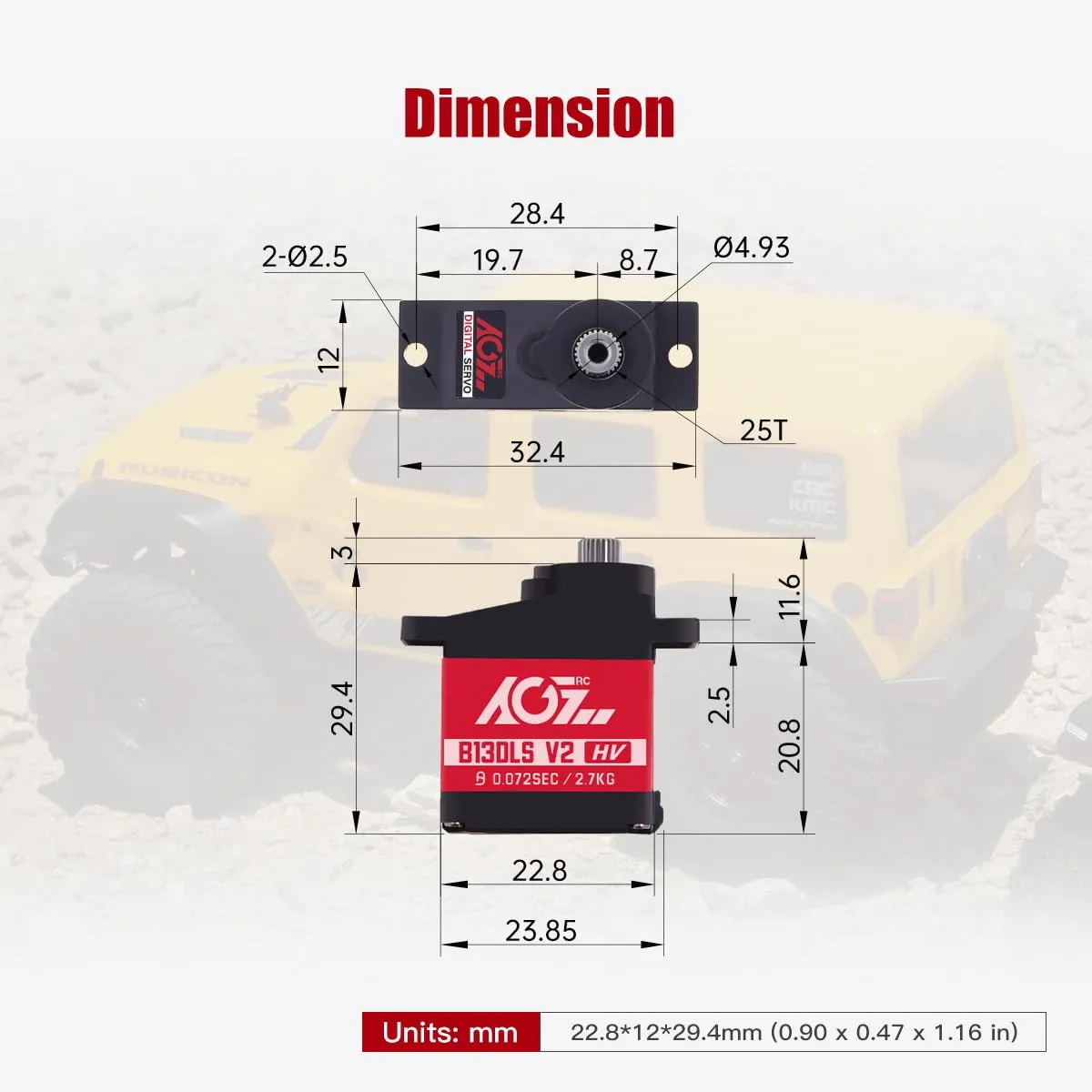

• Size: 22.8*12*29.4mm (0.90 x 0.47 x 1.16 in)

Package Included:

• 1 x AGFRC B13DLS V2 Digital Micro Servo
• 1 x Accessory Kit

• Product Dimensions ‏ : ‎ 0.9 x 0.47 x 1.16 inches; 0.64 ounces
• Manufacturer recommended age ‏ : ‎ 12 years and up
• Date First Available ‏ : ‎ May 23, 2023
• Manufacturer ‏ : ‎ AGF-RC Electronic Technology CO.,Ltd
• Country of Origin ‏ : ‎ China
