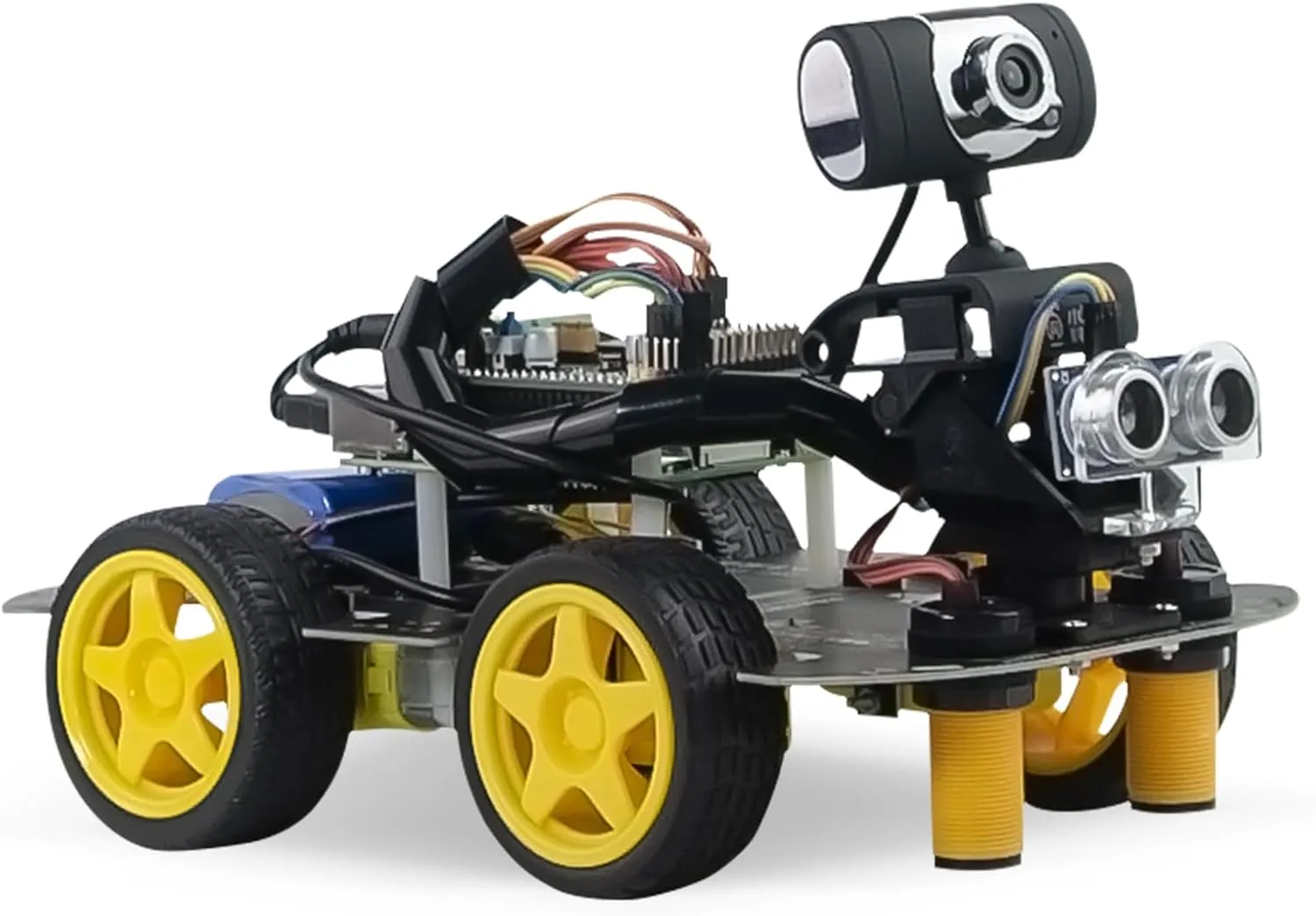

The Raspberry Pi DS V2 Smart Video Car Robot is a four-wheel drive (4WD) training smart car based on the Raspberry Pi.
The PWR.A53 driver board cooperates with the Raspberry Pi motherboard to provide power, motor drive, servo drive, and leads all available GPIOs of the Raspberry Pi to facilitate patch cords, and can expand more than 40 common robot sensors such as temperature, humidity, and light sensitivity.
The car can achieve wireless remote control via WiFi or Bluetooth, and supports control using APP or PC software.
The product is equipped with an infrared photoelectric sensor, which can realize infrared line patrol, infrared anti-drop and other functions.
Equipped with an ultrasonic sensor, it can realize ultrasonic anti-collision, ultrasonic ranging, ultrasonic maze walking and other functions.

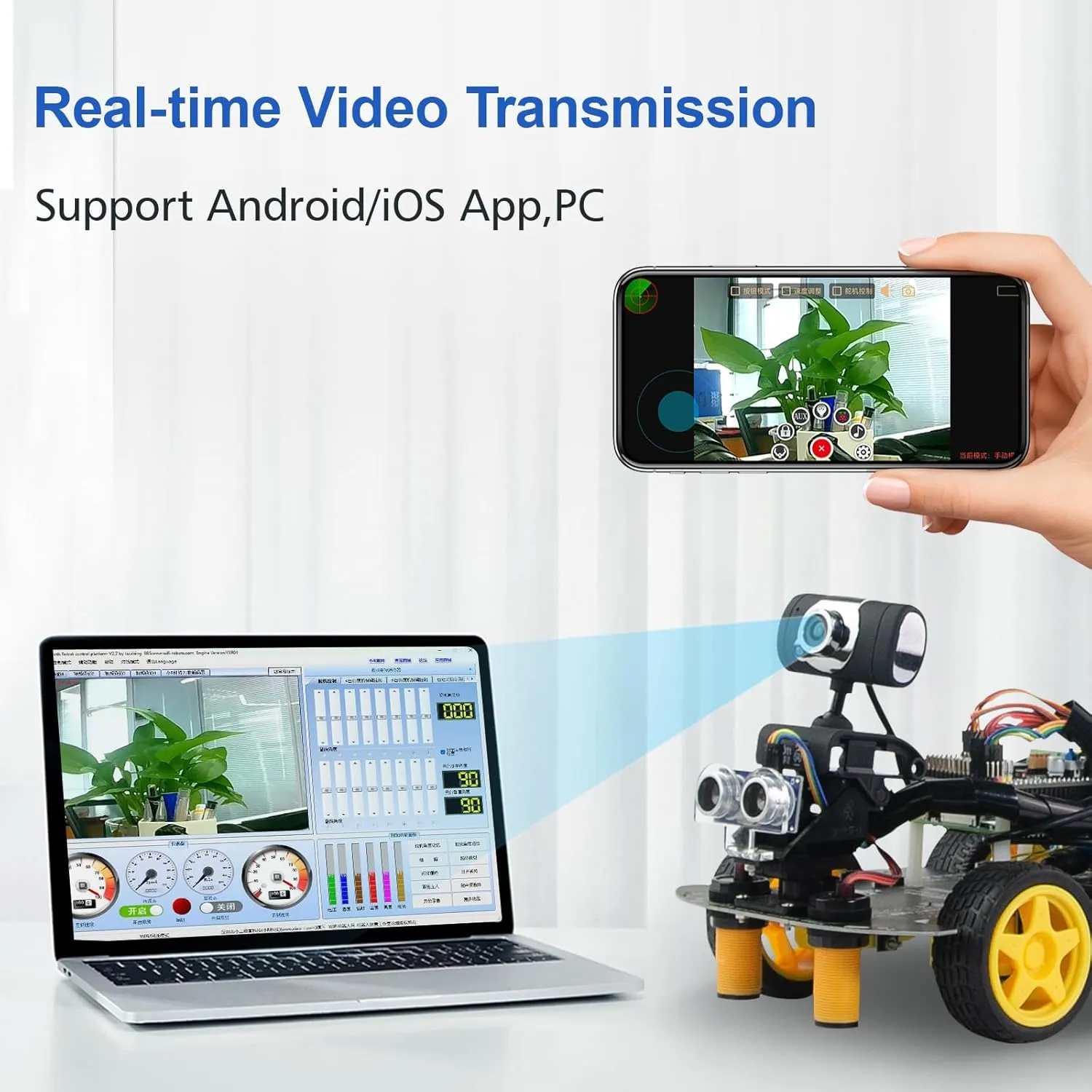

This product has a video image transmission function. In WiFi mode, the video image collected by the USB camera can be transmitted to the control terminal for display in real time.

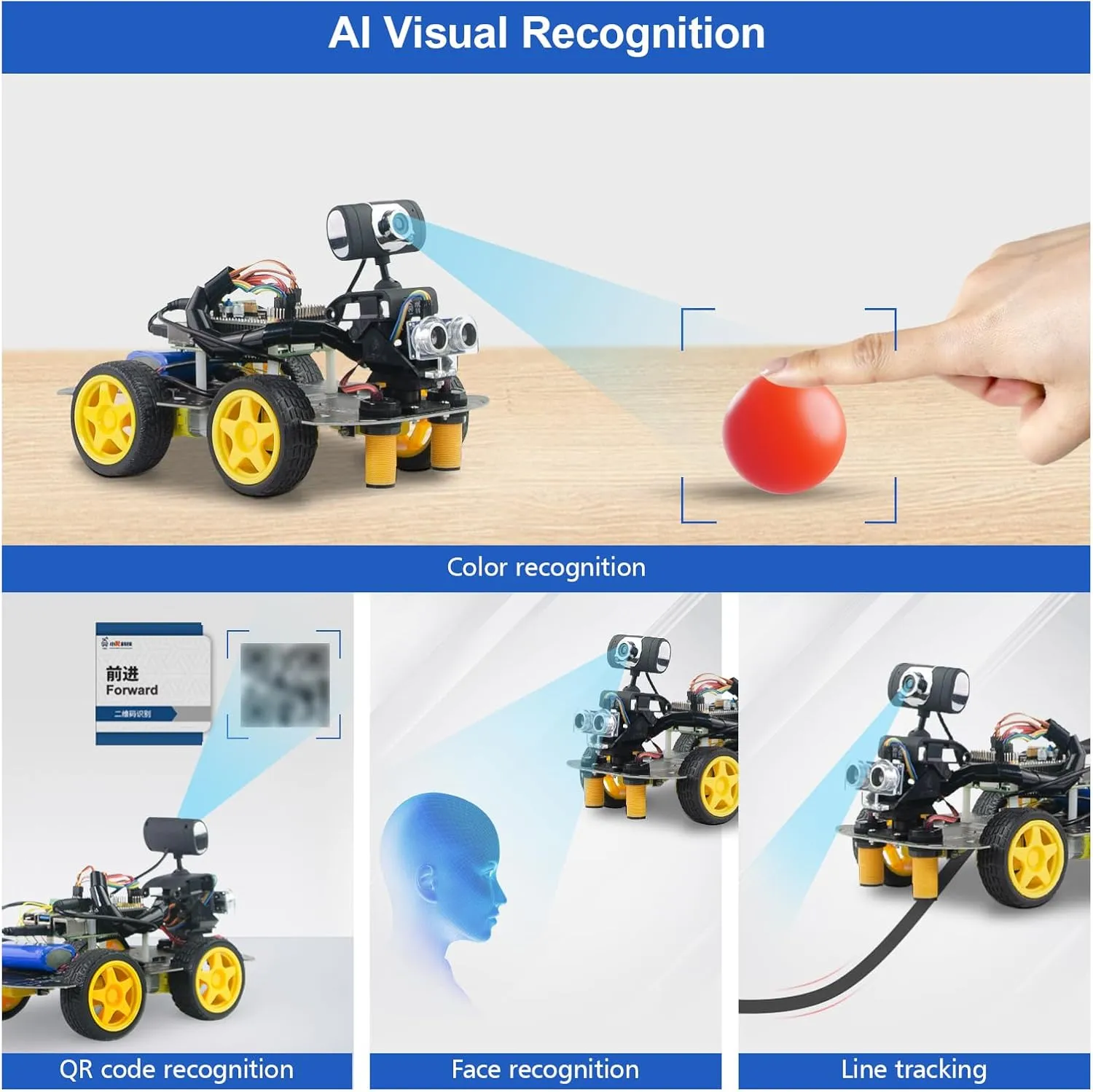

The smart car uses Python as the development language and has built-in a variety of interesting visual recognition functions, such as visual recognition of faces, visual recognition of colors, visual recognition of QR codes, etc.

Robot car kits include(Tool not listed):
1: Compatible Raspberry Pi 5/4B/3B /3B
2: PWR.A53.A power and motor Drive board×1
3: 16G micro SD Card×1
4: Robot-Eye robot USB Camera×1
5: PCB multi-function metal chassis×1
6: No-slip solid rubber tires×4
7: Motor×4
8: Two degrees of freedom video PTZ（including SG90 servo and screw bag）×1
9: Instruction manual ×1
10: 8.4V lithium battery charger×1
11: 2200mAh 7.4V 1A protection board lithium battery pack ×1
12: Wire(electric motor use)×1
13: Magic stick×1
14: Nylon column×8
15: long screw M3×8
16: Short Screw Cap M3×22
17: Short Screw M3×22
18: Ultrasonic sensor×1
19: Infrared sensor×2
