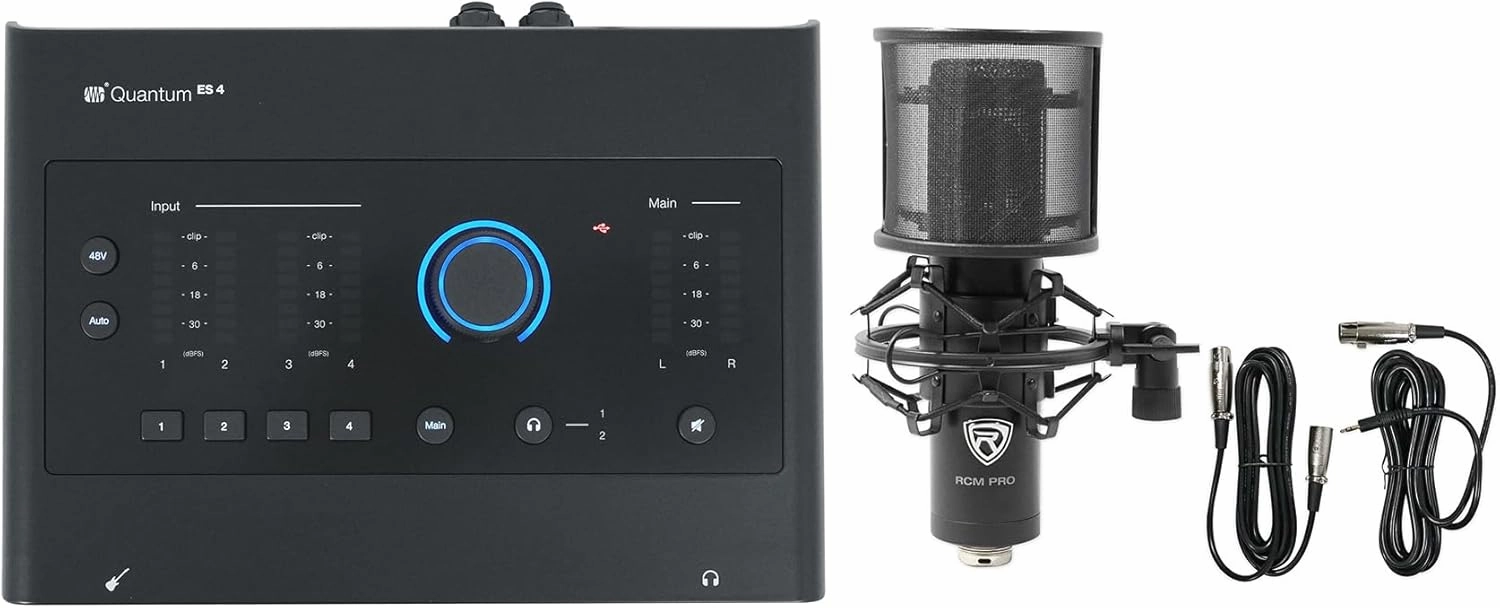

- (1) Presonus Quantum ES4 4 x 4, 24-bit / 192 kHz USB-C Audio Recording Interface(1) Rockville RCM PRO Studio/Recording Condenser Microphone w Samsung Capacitors. . 4 x 4, 24-bit / 192 kHz USB-C Audio Interface. High-performance converters let you hear and capture audio with stunning clarity and fidelity.. Custom low-latency driver provides exceptionally low audio latencies when recording.
- All-new, next-generation PreSonus MAX-HD preamp design provides transparency and accuracy across the frequency range with 75 dB of gain to maximize the performance for a wide range of today's most popular microphones for modern recording and broadcast.. Auto Gain button sets the perfect gain level for your microphones and instruments, so you get the perfect take every time.
- Control your Quantum ES right from Studio One and the Universal Control app, in addition to hardware, so you can adjust preamp gain, toggle phantom power, adjust channel settings, and more without looking away from your recording session. Perfect for dialing in optimal gain staging.. Bright and responsive LED metering lets you keep an eye on your input and output meters, perfect when recording alone.
- 2 balanced 1/4-inch TRS main outputs plus 2 balanced 1/4-inch TRS line outputs and 2 high-power headphone outputs for flexible monitoring. And built-in speaker switching lets you check your mix on multiple sets of studio monitors.. Loopback audio makes creating monitor and streaming mixes quick and easy. . Microphone Inputs: 4. Guitar Inputs: 2. Line Inputs: 4. Line Outputs (DC coupled): 4. Headphone Outputs: 2. USB-C Ports: 1. Aux Power Ports: 1.
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192. Bit Depth: 24. . Connector Type: 4x Combo-style, XLR / TRS. Max Input: 14 dBu (balanced, minimum gain). Gain Range: 0 dB to 75 dB. Frequency Response: 20 Hz to 20 kHz, /-0.2 dB (unity gain, reference 1 kHz). Dynamic Range: 113 dB (A-weighted, minimum gain). THD N: 0.001 (1 kHz, minimum gain). EIN: -129 dBu (max gain, 150 Ohms, 22 kHz BW, A-weighted). Input Impedance: 1600 Ohms.
Connector Type: 4x Combo-style, XLR / TRS. Max Input Level: 15 dBu (balanced, minimum gain). Frequency Response: 20 Hz to 20 kHz, /-0.1 dB (unity gain, reference 1 kHz). Dynamic Range: 114 dB (A-weighted, minimum gain). THD N: 0.001% (1 kHz, minimum gain). Input Impedance: 10K Ohms. Digital Trim: -10 to 10 dB. . Connector Type: 2 x 1/4-inch Female. Gain Range: -7 dB to 68 dB. Max input level: 15 dBu (unbalanced, minimum gain). Frequency Response 20 Hz to 20 kHz, /-0.2 dB (unity gain, reference 1 kHz). Dynamic Range: 111 dB (A-weighted, minimum gain). THD N: 0.002% (1 kHz, minimum gain). Input Impedance: 1M Ohms. . Connector Type: 2x 1/4-inch Female, TRS. Max Output Level: 15 dBu (Balanced). Frequency Response: 20 Hz to 20 kHz, /-0.1 dB (unity gain, reference 1 kHz). Dynamic Range: 117 dB (A-weighted). THD N: 0.001% (1 kHz, 4 dBu). Output Impedance: 51 Ohms. Trim Range: -inf dB to 0 dB. . Connector Type: 2x 1/4-inch Female, TRS. Max Output Level: 15 dBu (Balanced). Frequency Response: 20 Hz to 20 kHz, /-0.1 dB (unity gain, reference 1 kHz). Dynamic Range: 117 dB (A-weighted). THD N: 0.001% (1 kHz, 4 dBu). Output Impedance: 51 Ohms. Trim Range: -inf dB to 0 dB. . Connector Type: 2x 1/4-inch Female, TRS Stereo. Max Output Level: 7.5 dBu (50 Ohms). Frequency Response: 20 Hz to 20 kHz, /-0.2 dB (unity gain, reference 1 kHz). Dynamic Range 111 dB (A-weighted). THD N: 0.02% (1 kHz). Output Impedance: 22 Ohms. Trim Range: -inf dB to 0 dB. . Aux Power DC Connector: USB-C (USB-C to USB-C cable required, not included). Aux Power DC Requirements: 5VDC, 2.6A. . Length: 8.4'' (213 mm). Width: 6.2'' (157 mm). Height: 1.9'' (48 mm). Weight: 1.8 lb (0.81 kg). (22 gauge, 10 feet) XLR to XLR Cable - To connect to the phantom power input on your mixer or interface(22 gauge, 10 feet) 3.5mm to XLR Cable - To connect the microphone to your computer. Metal Shock Mount. Large Wind-Screen/Pop-Filter. Owners Manual. Warranty Card
