- Variable-speed benchtop centrifuge with speeds ranging from 500 to 2,000 rpm with the ASTM package
- Includes four-place swing-out rotor to accommodate four 290mL tubes, four buckets, and four 100mL adapters for 37 x 200mm tubes (tubes sold separately)
- 10 programmable memory settings
- Stainless-steel inner bowl for simplified cleanup
- Automatically senses rotor type and shuts off if rotor becomes imbalanced

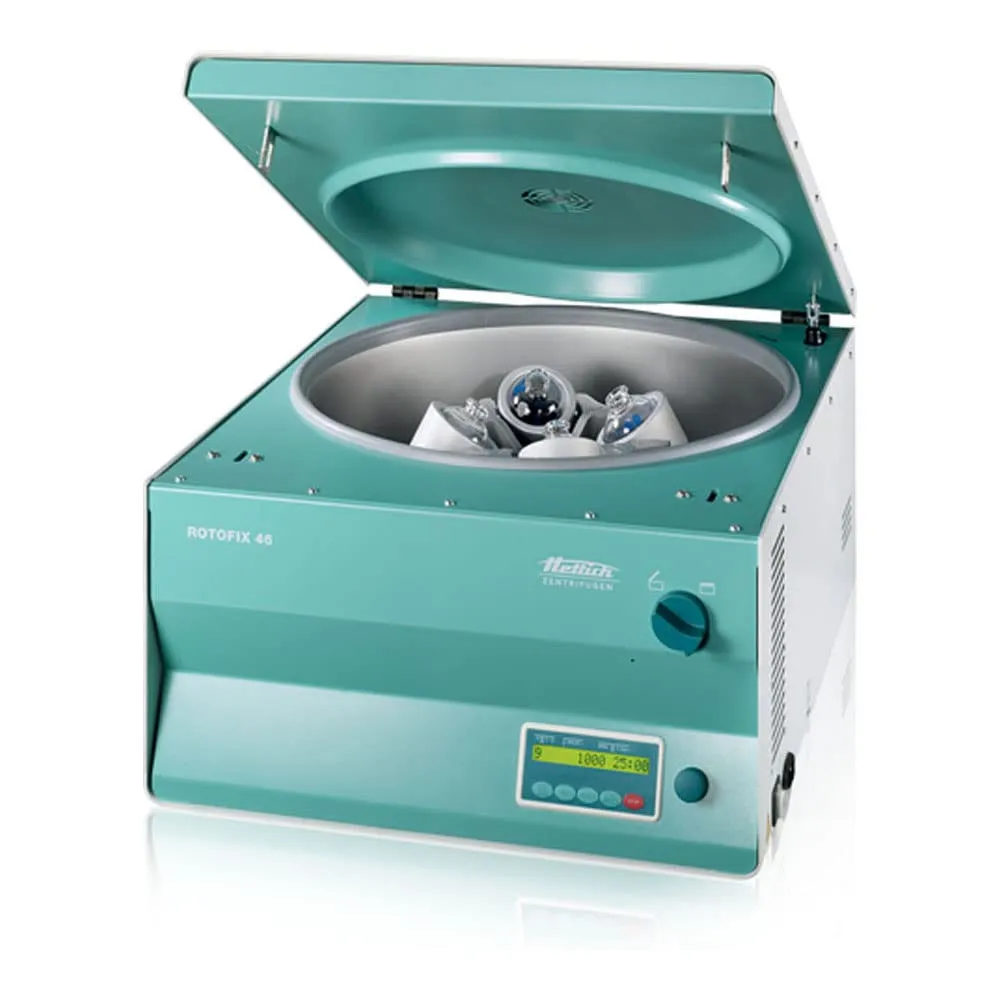

The Hettich 46ASTM-100C model of Rotofix 46 series centrifuge is a variable-speed benchtop centrifuge with a maximum speed of 2,000 rpm. This centrifuge comes with a four-place swing-out rotor, four buckets, and four 100mL adapters for 37 x 200mm tubes (sold separately). The rotor accommodates four 290mL tubes (sold separately). The stainless-steel inner bowl simplifies cleanup. Its timer is settable from 1 to 99 minutes or 1 to 59 seconds and has 10 programmable memory settings. The centrifuge automatically senses the rotor type and stops when the lid opens for increased safety.
This benchtop centrifuge is non-refrigerated. It accommodates ASTM (American Society for Testing Materials) tubes for applications such as testing water in oil, suspension of particulates, dairy, and micro fluidics.
SpecificationsRotor and buckets4-place swing-out rotor to accommodate four 290mL tubes, four buckets, and four 100mL adapters for 37 x 200mm tubesCompatible with additional interchangeable rotors (sold separately)Speed range500 to 2,000 rpmMaximum relative centrifugal force (RCF)961 x gTimer99 min in 1 min increments or 59 sec in 1 sec incrementsNoise levelLess than 66dBPower115VAC, 60HzWeightApproximately 132lb. (60 kg)Dimensions345 x 538 x 647mm (H x W x D)
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
A centrifuge is used to spin fluids of different densities to separate various parts, commonly blood and DNA samples. Centrifuges are composed of the main body or housing and a spinning rotor. Tubes of cellular material suspended in liquid are inserted into the rotor and spun at various speeds to separate components. Centrifuges are used in medical, industrial, and research laboratories, as well as academic and clinical settings.
Hettich manufactures centrifuges and incubators for clinical and life science applications. The company, founded in 1904, is headquartered in Tuttlingen, Germany.
What's in the Box?
- Hettich Rotofix 46 centrifuge
- Swing-out rotor
- (4) Buckets
- (4) 100mL adapters
- Power cord
- Instructions
- Item Weight : 0.71 ounces
- Date First Available : June 29, 2013
- Manufacturer : Hettich
- Country of Origin : USA
