- Good combination of speed and controllability
- Graphical OLED display
- Full wrap-around bumper to protect electronics from collisions
- Two bump sensors on the front
3pi 2040 Robot - Turtle Edition body { font-family: Arial, sans-serif; line-height: 1.6; } .container { width: 80%; margin: auto; } h1, h2 { color: #333; } ul { list-style-type: square; }

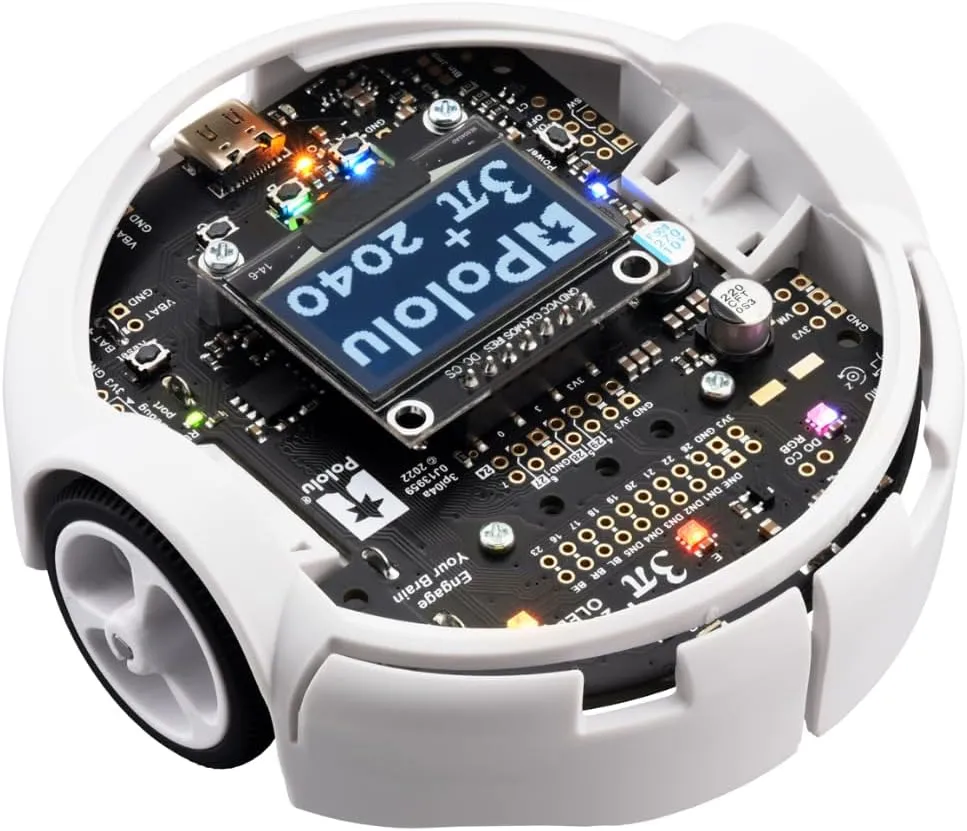

3pi 2040 Robot - Turtle Edition (75:1 LP Motors), Assembled
The Pololu 3pi 2040 robot is a palm-sized, high-performance mobile platform based on the Raspberry Pi RP2040 MCU. It includes dual quadrature encoders, line sensors, front bump sensors, a full IMU (3-axis accelerometer, magnetometer, and gyro), six RGB LEDs, and a graphical OLED display. The Turtle Edition version features 75:1 LP 6V Micro Metal Gearmotors, offering longer battery life and a maximum speed of 0.4 m/s, making it ideal for controlled-speed applications.
Overview
The 3pi 2040 is a high-performance, user-programmable robot measuring 9.7 cm in diameter. Powered by a Raspberry Pi RP2040 microcontroller, a 32-bit dual-core Arm Cortex-M0 processor running at 125 MHz, it supports programming in C, C , Arduino, and Python. The 3pi 2040 has 16 MB of flash memory preloaded with MicroPython, allowing users to start programming immediately via the USB-C port.
Features
- Raspberry Pi RP2040 dual-core processor (125 MHz)
- 16 MB preloaded flash memory with MicroPython
- Dual quadrature encoders for motor control
- Five reflectance sensors for line-following
- Full IMU (3-axis accelerometer, magnetometer, and gyro)
- Three push buttons for user input
- 128×64 graphical OLED display
- Six RGB LEDs and buzzer for feedback
- Unique power system ensuring a constant 8V motor operation
Available Versions
The 3pi 2040 robot comes in multiple editions:
- Standard Edition: 30:1 MP 6V motors, 1.5 m/s, balanced speed and control
- Turtle Edition: 75:1 LP 6V motors, 0.4 m/s, longest battery life, ideal for swarm robotics
- Hyper Edition: 15:1 HPCB 6V motors, ~4 m/s, very fast and for advanced users
Customization Options
The 3pi chassis and 3pi 2040 control board are available separately for users who wish to assemble a custom version with different motors.
What You Will Need
- Four AAA batteries (Alkaline or rechargeable NiMH recommended)
- A USB-C cable for programming and debugging
Product Details
This product is the assembled Turtle Edition of the 3pi 2040 Robot, featuring 75:1 LP 6V Micro Metal Gearmotors. It is ideal for applications requiring slow, precise movement, such as swarm robotics and introductory robotics courses.
