- The XGECU T76 programmer supports:T76 programmer is the update version of T56 programmer26, 27, 28, 29, 37, 39, 49, 50 series parallel ROM, EPROM, EEPROM;24, 25, 35, 45, 85, 93, 95 series serial EEPROM; P-NAND FLASH, customizable to add new chip models;SPI NAND (SD NAND/SD cards); EMMC/EMCP;microcontroller series programming;GAL/CPLD programmable logic device programming;VGA tool and VGA ISP programming;SRAM chip testing;High-performance 54/74F/LS/HC CMOS4000 series IC logic test. common EEPROM, EPROM, FLASH chips,support robust microcontroller and programmable logic device (GAL/CPLD) and with the capability to customize and add new chip models. the chip models will be updated normally.
- The XGECU T76 features: high-performance 32-bit RISC-V MCU FPGA controller, paired with a high-speed USB 3.0 Type-C interface. This configuration provides data transfer speeds up to 140MB/sec (EMMC 5.1 actual transfer rate), multiple times faster than traditional programmers! Whether you are reading or writing data, you will experience lightning-fast operation. EMMC 5.1 actual transfer rate up to 140MB/sec (8.4GB/minute).SPI NAND read speed up to 18MB/s.64 Gb P-NAND read speed of 30MB/S.
- The T76 design: employs a high-density board design and comes with a high-quality USB 3.0 aluminum gray braided cable, ensuring stable and reliable signal transmission. In addition, the T76 offers comprehensive power protection mechanisms, including over-voltage, over-current, reverse connection protection, and low-voltage warnings, allowing you to program with peace of mind, worry-free.30% more internal components than T56, with a higher density board design.
- Note: before you buy ,you can download the software or contact us to check the programmer whether support the chip typle,which adapter it need, then choose the adapter kit you need,thanks .Support : Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

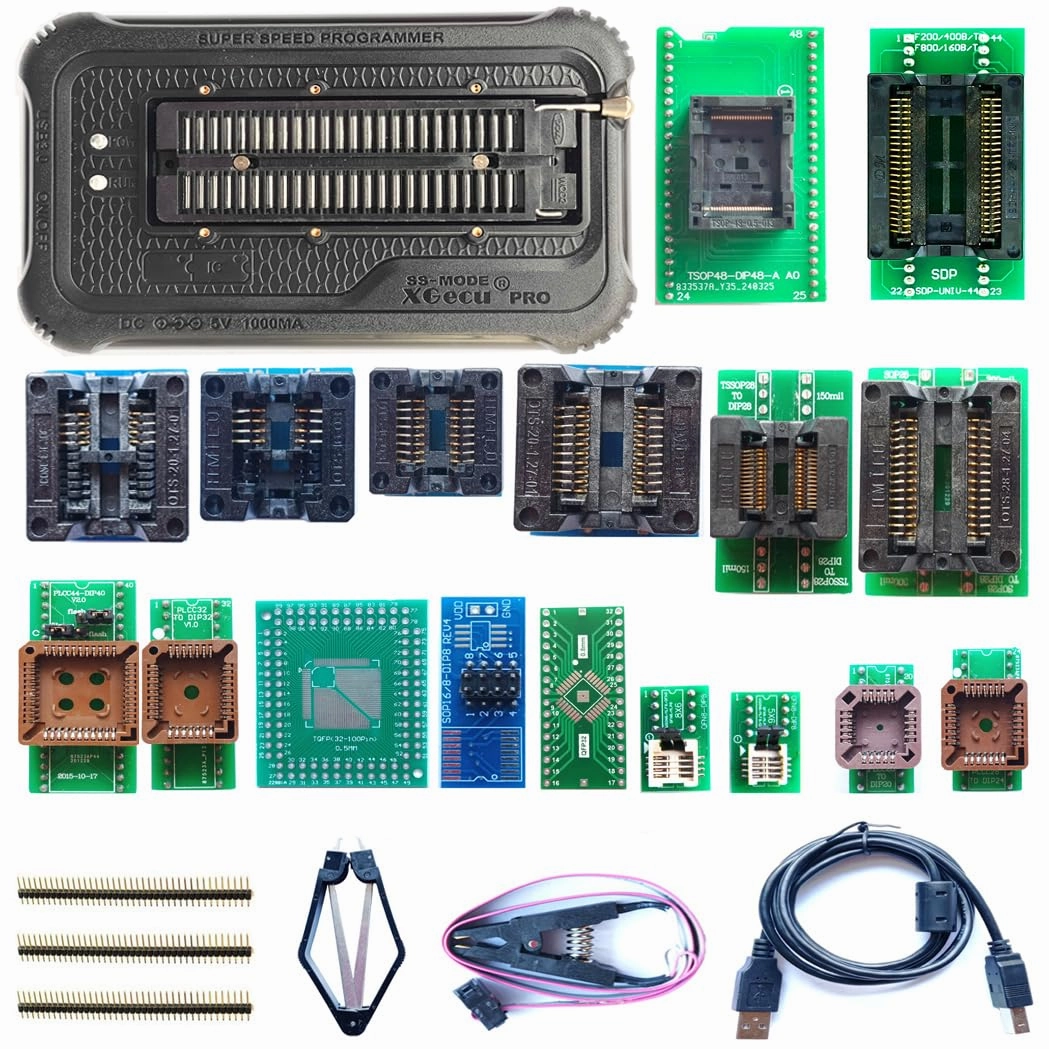

- Package include:1*T76,USB cable*1, SOP8 clip*1,1*TSOP48 SOCKET,1*SOP44 SOCKET,1*SOP28,1*TSSOP28,1*SOP20,1*SOP8 200MIL,1*SOP8 150MIL,SOP16 150MIL,1*PLCC44,1*PLCC32,1*PLCC28,1*PLCC20,1*QFN8 5*6,8*6,1*TQFP32-100PIN BOARD,1*QFN32 BOARD,SOP8/16 ADAPTER,1*EXTRACTION TOOL.3*pin head
The XGECU T76 programmer IO design:Adopts a high-quality USB 3.0 Type-C aluminum gray braided cable for stable and reliable signal transmission.VCC voltage adjustable from 1.2V to 6.5V (64-level adjustable), and VPP voltage adjustable from 6.5V to 25V (64-level adjustable).IO communication signal voltage adjustable from 1.2V to 3.6V (64-level adjustable).VCC current limit adjustable from 120mA to 450mA, VPP current limit at 150mA, both with overcurrent protection.Supports 5V <1A power supply, with a static power consumption of just 150mA (tested in standby mode).Offers comprehensive external power multi-protection, including over-voltage, reverse connection, over-current, and low-voltage tips. Adapter Quality: Most off our adapters are use gold-plated pin header,Better contact between the adapter and the programmer: The adapter uses high-quality spring-loaded sockets, which have strong resilience, can better read and write chips and have a long service life. T76 programmer Size: With dimensions of only 12mm x 7mm x 2.8mm, the T76 is lightweight and portable, allowing you to perform chip programming anytime, anywhere.Small machine, big function,The T76 Programmer will become an indispensable and reliable assistant for your work and study! Whether you are an electronic engineer, a repair technician, or a DIY enthusiast, the T76 can bring you an unprecedented efficient, convenient, and reliable chip programming experience.
- Package Dimensions : 7.72 x 5.55 x 2.72 inches; 1.19 Pounds
- Date First Available : September 21, 2023
- Manufacturer : MORIENZI
- Country of Origin : China
